NEOS
NEOS is an innovative lamp concept with buildable models in several different colour choices. Choose between two models of lamp arm, table legs or clamp or pin. Design Peter Mattisson.
The NEOS table lamp combines durability with stylish design and modern technology. A lamp that is at once classic and innovative, in a durable design but still with its very own expression.

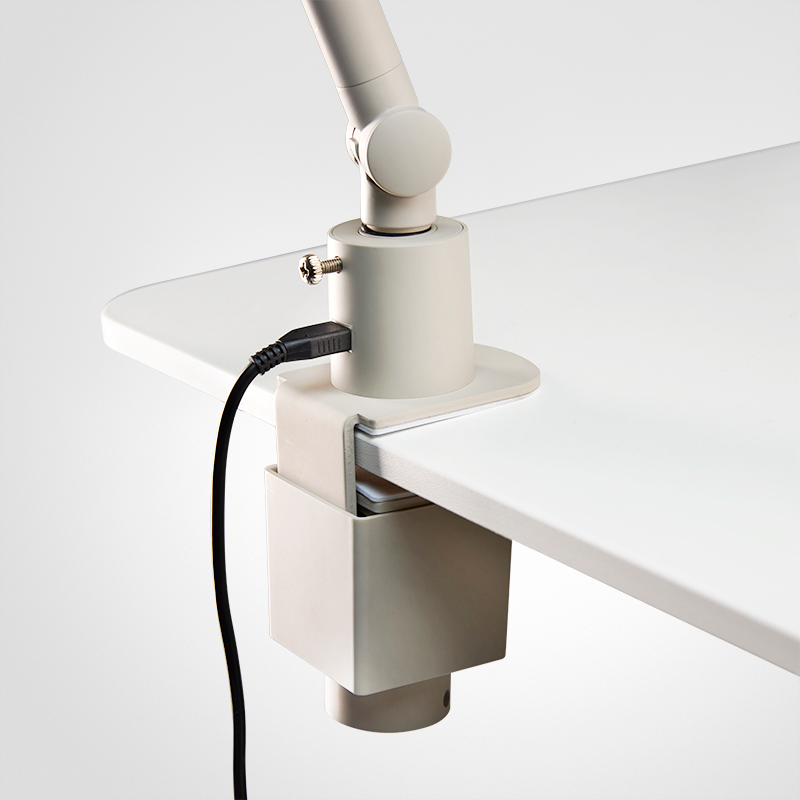

NEOS arm and foot are available in two different designs. You can also select a clamp or bushing bracket/pin.
- NEOS Z lamp arm with LED COB for extra light flow, plus a timer and dimmer.
- NEOS X lamp arm with asymmetric light has adjustable correlated colour temperature (CCT), plus a timer and dimmer.
- NEOS Z table base is a simple table base.
- NEOS X table base has QI and USB charging with a rubber ring to mark the spot for charging the device.
Product specification:
| Dimensions: | Table base: 185 mm x 210 mm Hight: 490 mm Lamp head: 108 x 99 mm |
| NEOS Z lamp arm (LED COB) | NEOS X lamp arm | |
|---|---|---|
| Output / light source / luminous flux: | 6W LED 560 lumens, replaceable LED | 6W LED 560 lumens, replaceable LED |
| Energy efficiency: | 95 lumens/watt | 85 lumens/watt |
| Colour temperature: | 3100K | Variable 3000–6500K or three presses for 3000, 4000 or 6500K respectively. |
| Colour reproduction: | 80 Ra | 90 Ra |
| Lighting intensity at 40 cm: | Four-step variable dimmer 0–1770 lux | Four-step dimming from 0–1300 Lux |
| Energy efficiency class: | F | F |
| Timer: | 2, 4 and 9 hours | 2, 4 and 9 hours |
| NEOS Z table base | NEOS X table base | |
| Charging function: | – | Qi charge, USB charging |
Article no:
| White | Black | Sandstone Grey | Forest Green | Sunset Gold | |
| NEOS Z lamp arm | 775121 | 775101 | 775111 | – | – |
| NEOS X lamp arm | 775120 | 775100 | – | 775160 | 775177 |
| NEOS Z table base | 775123 | 775103 | 775113 | – | – |
| NEOS X table base | 775122 | 775102 | – | 775162 | – |
| NEOS table bushing | 775125 | 775105 | 775115 | – | – |
| NEOS clamp | 775124 | 775104 | 775114 | 775164 | 775117 |
